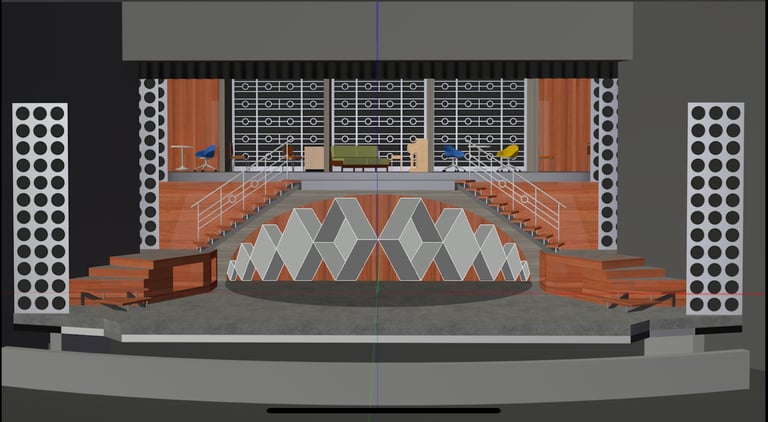

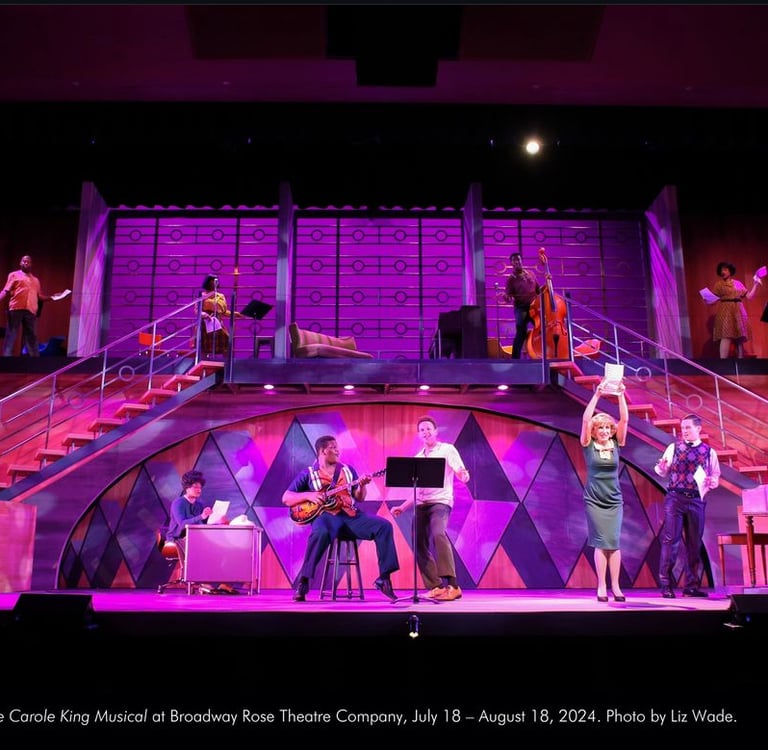

Beautiful

Broadway Rose Theatre Companyl-2024

Director: Lyn Cramer

Set Designer: Bryan Boyd

Technical Director: Raef Wheaton

Lighting Designer: Kristeen Willis

Biggest challenges:

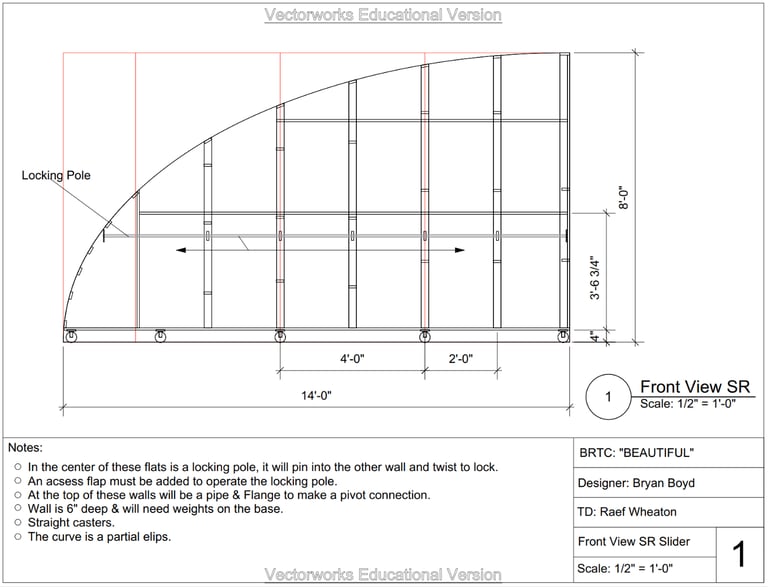

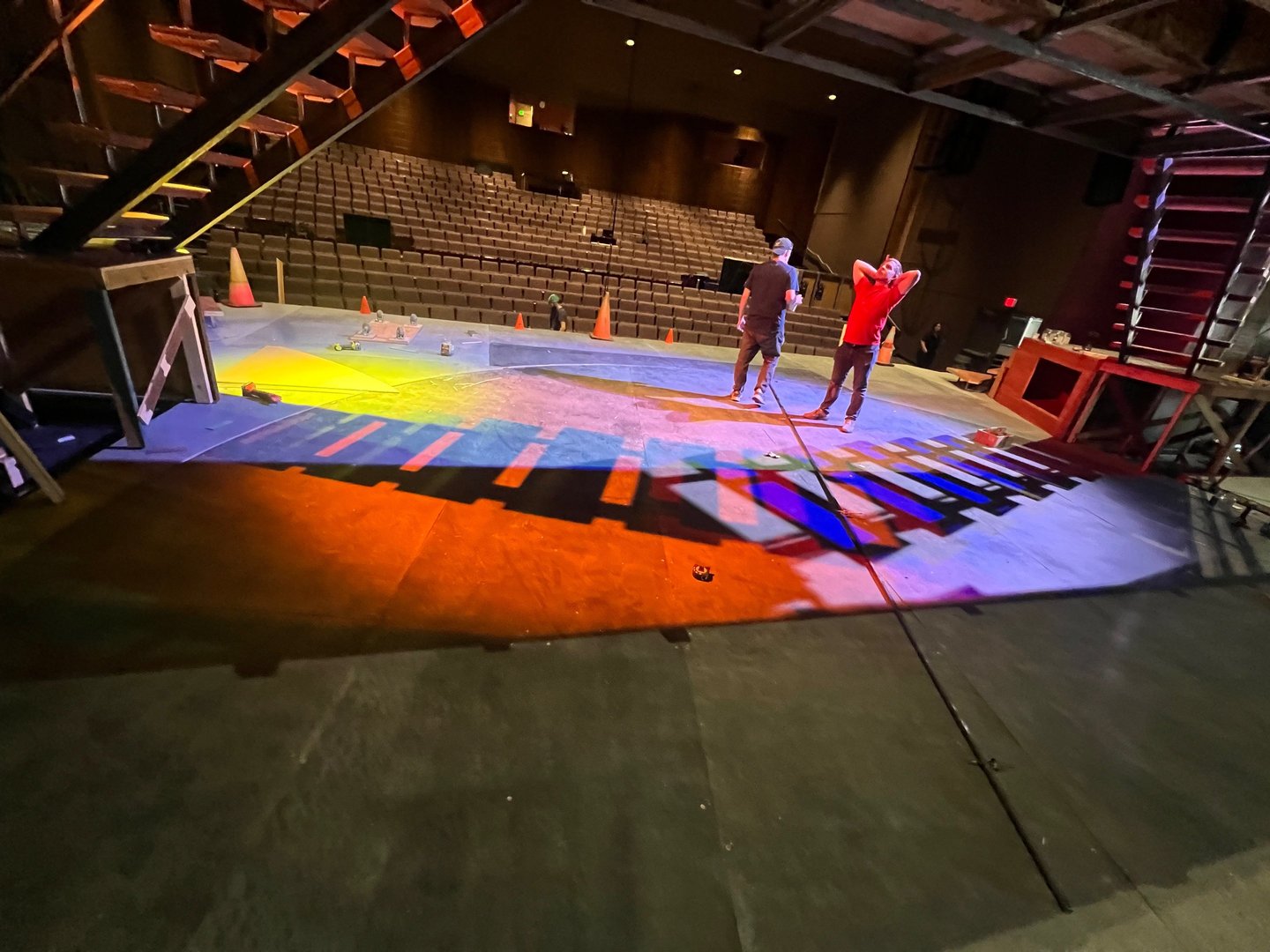

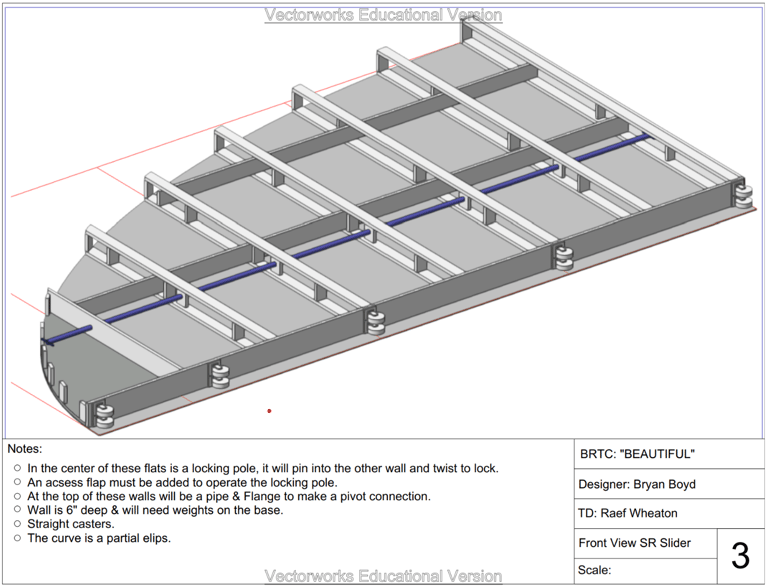

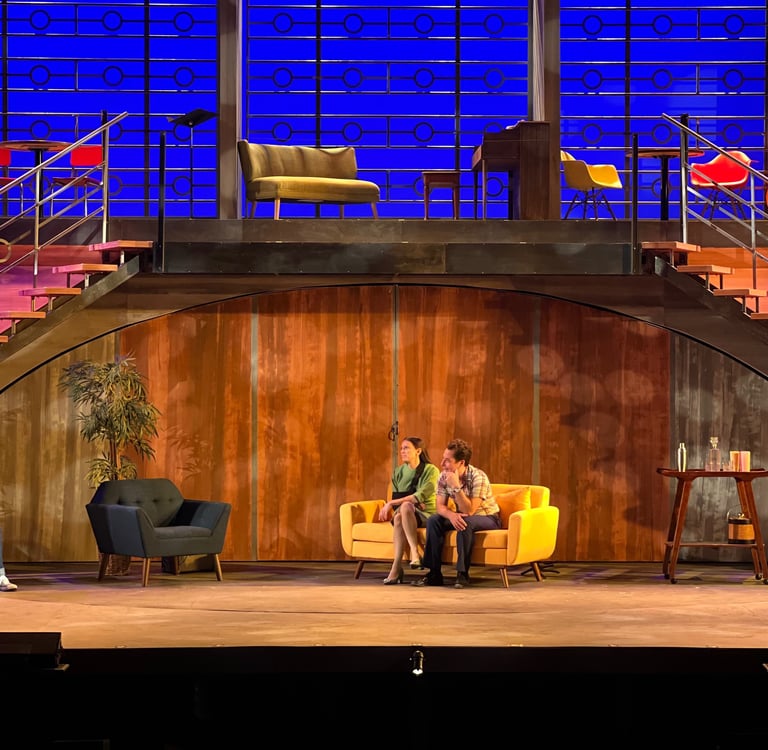

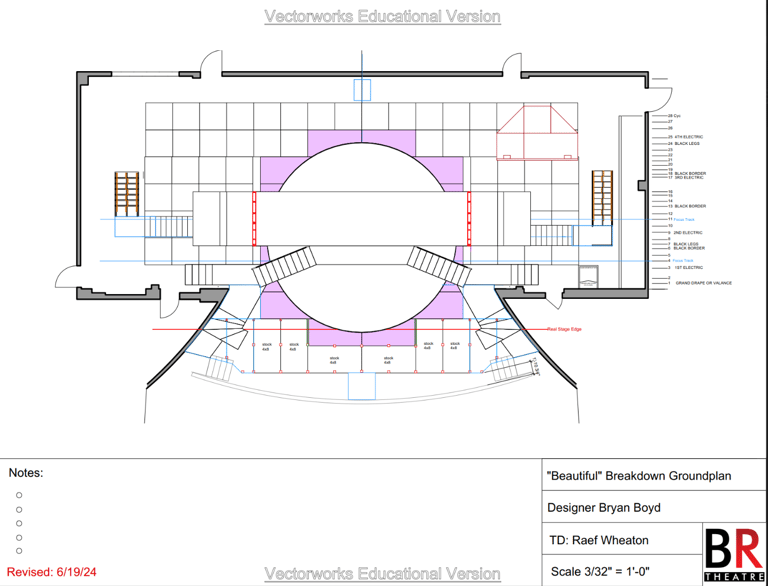

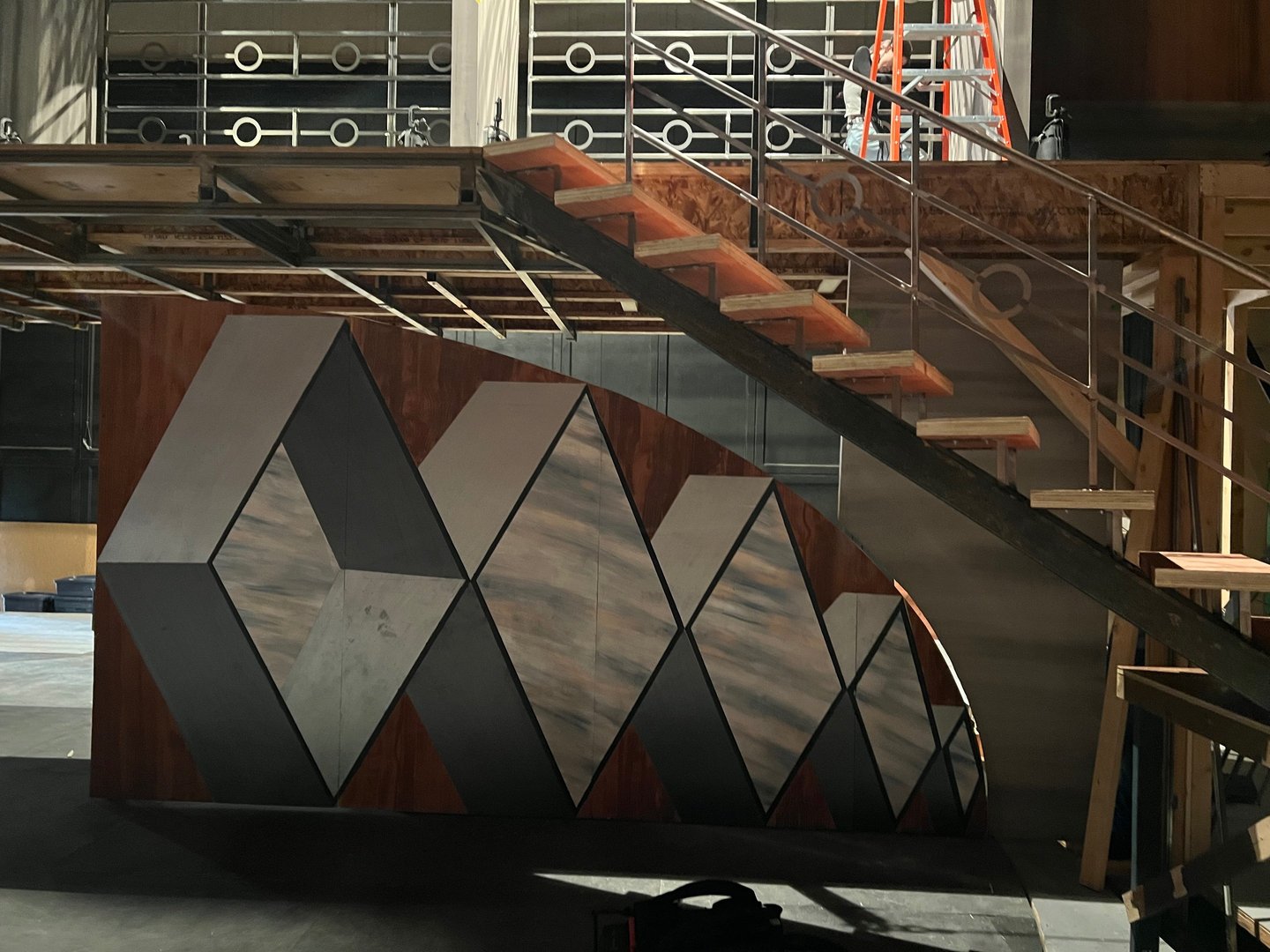

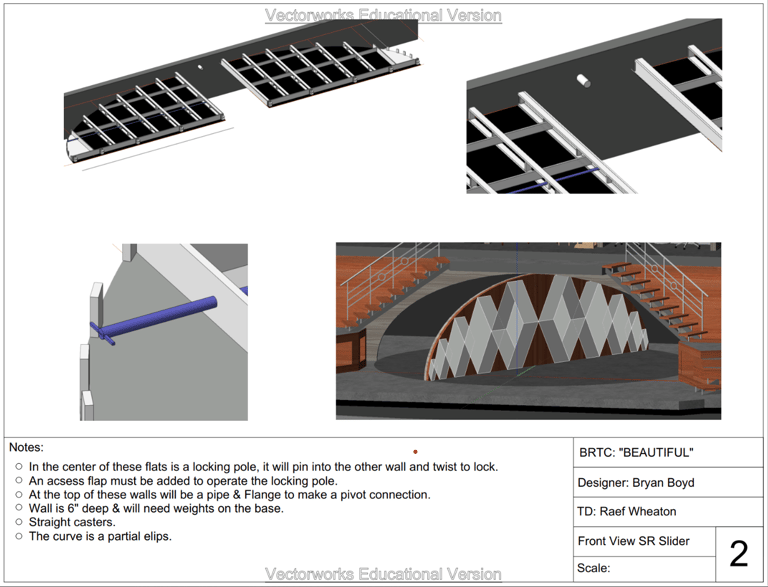

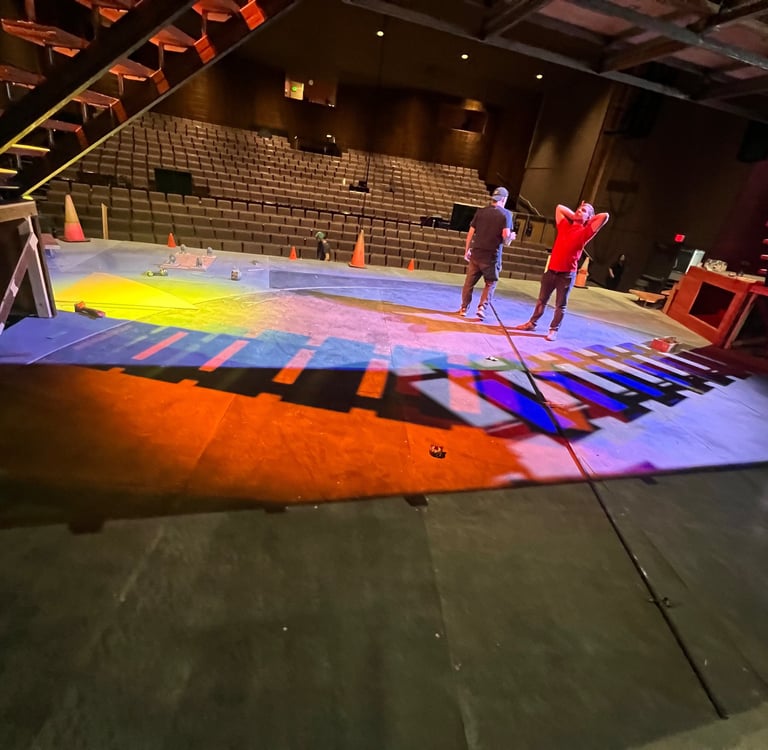

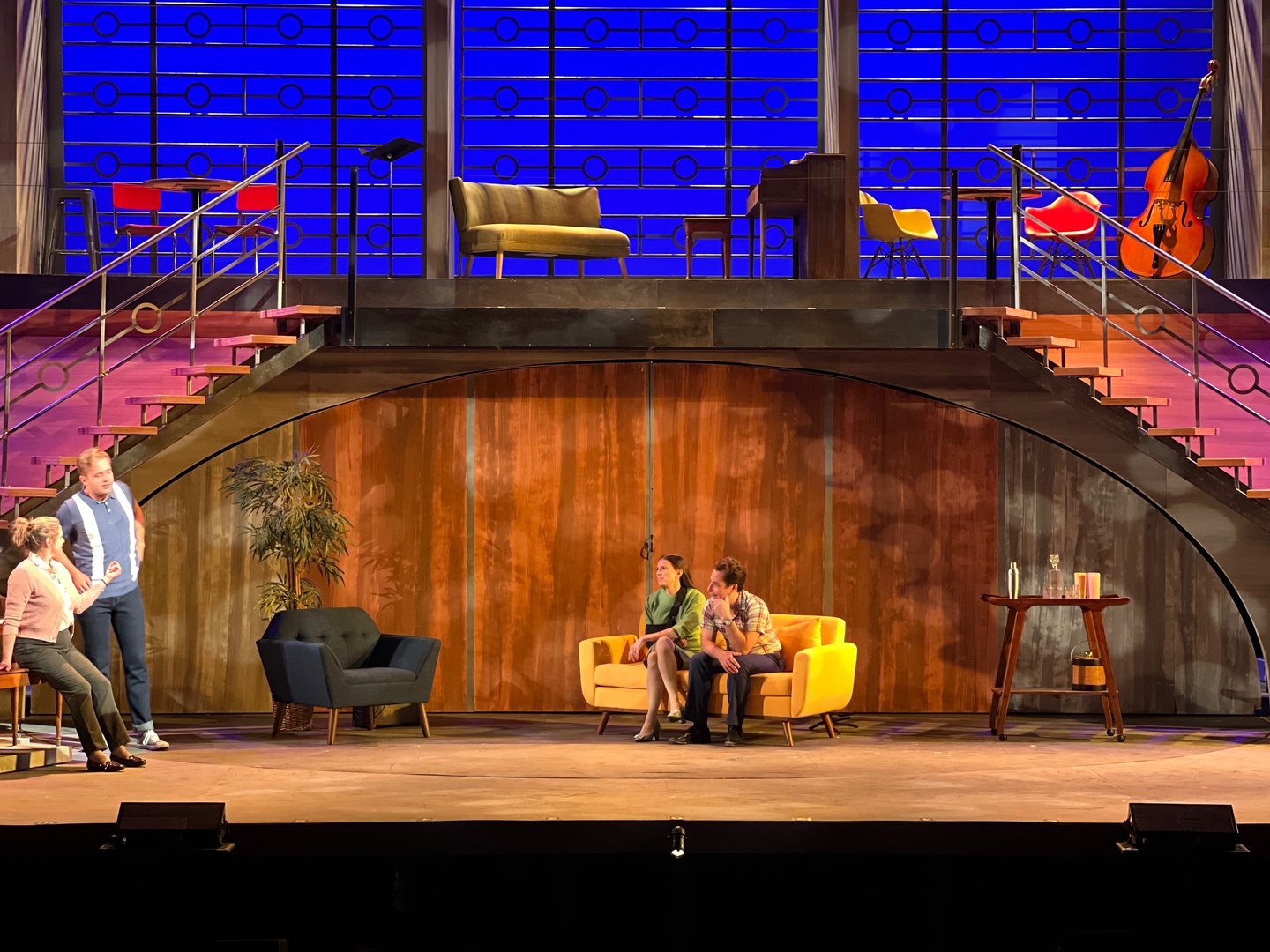

• 28'-0" revolving stage with half circle sliding barn doors that spin with it.

• 52' long second level with a 32' unsupported span

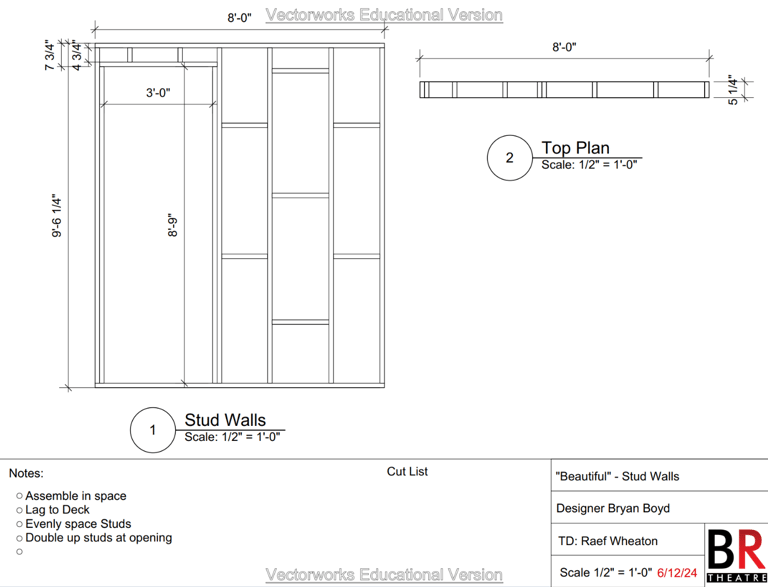

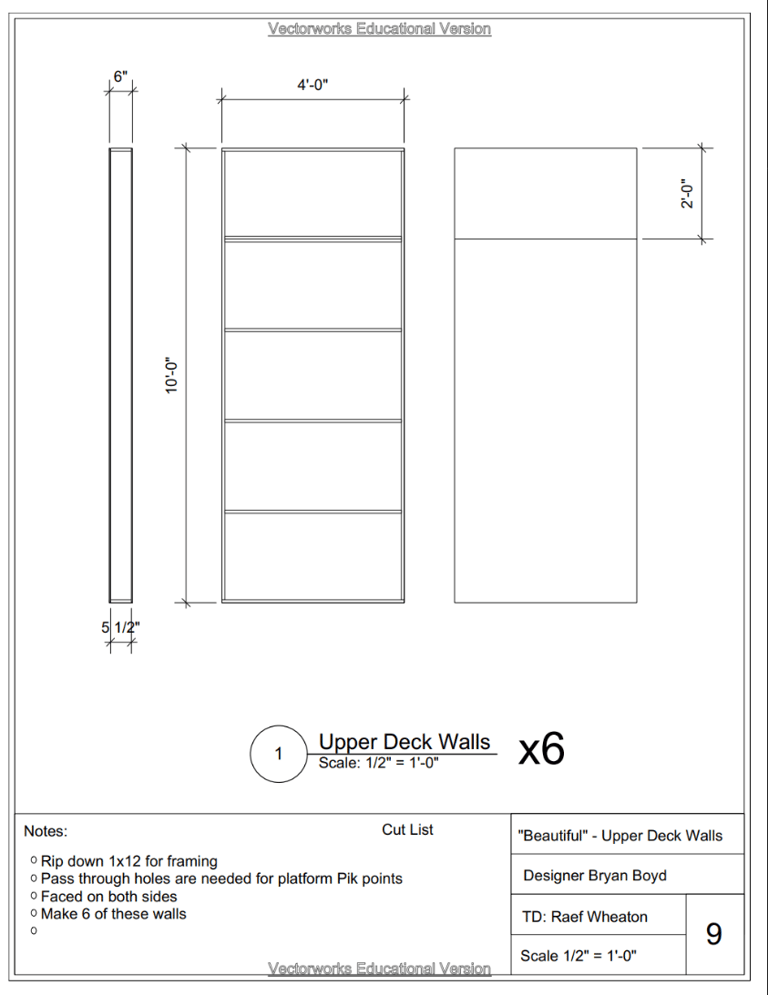

  • we hid pik points inside the walls to the grid

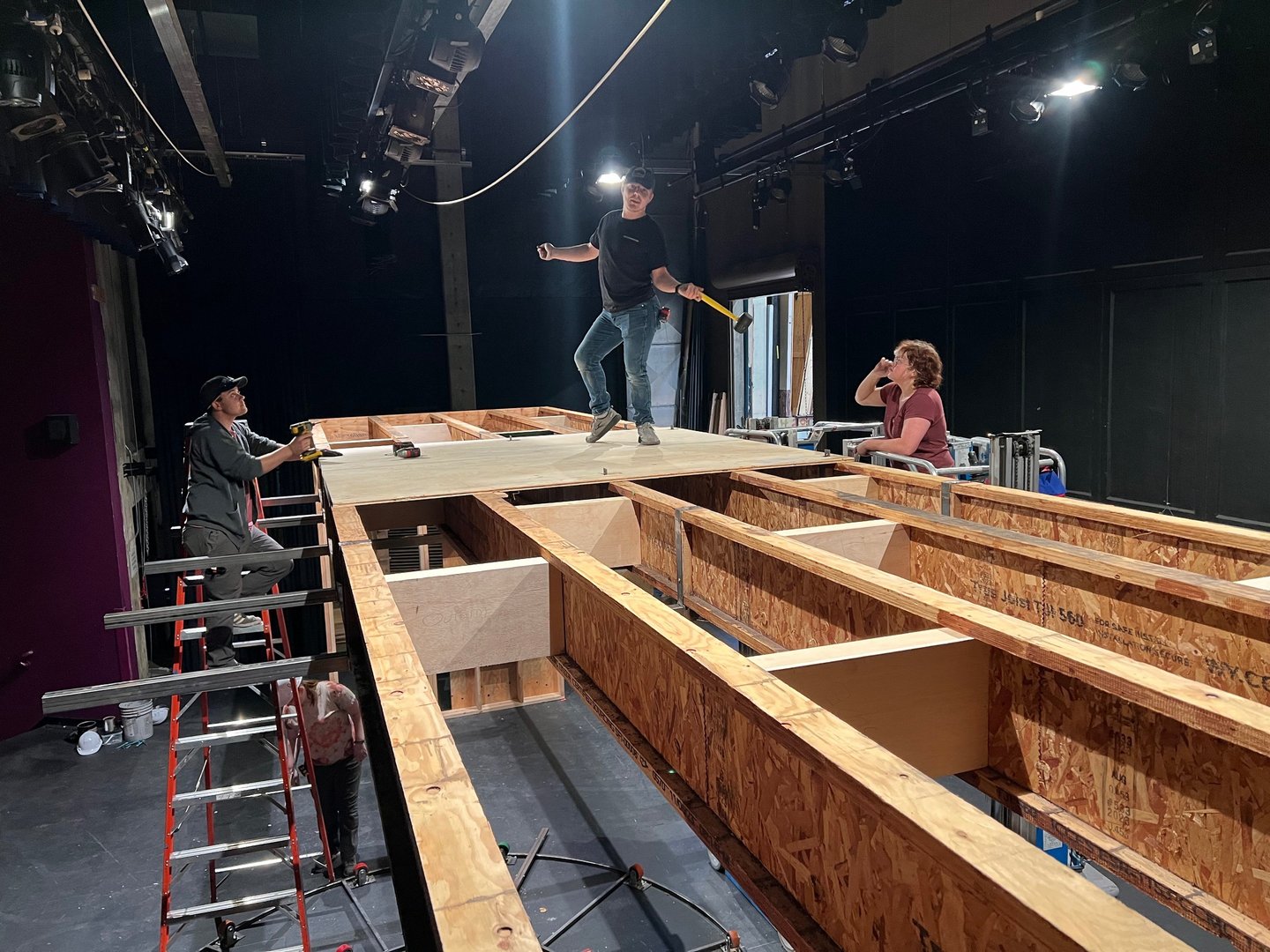

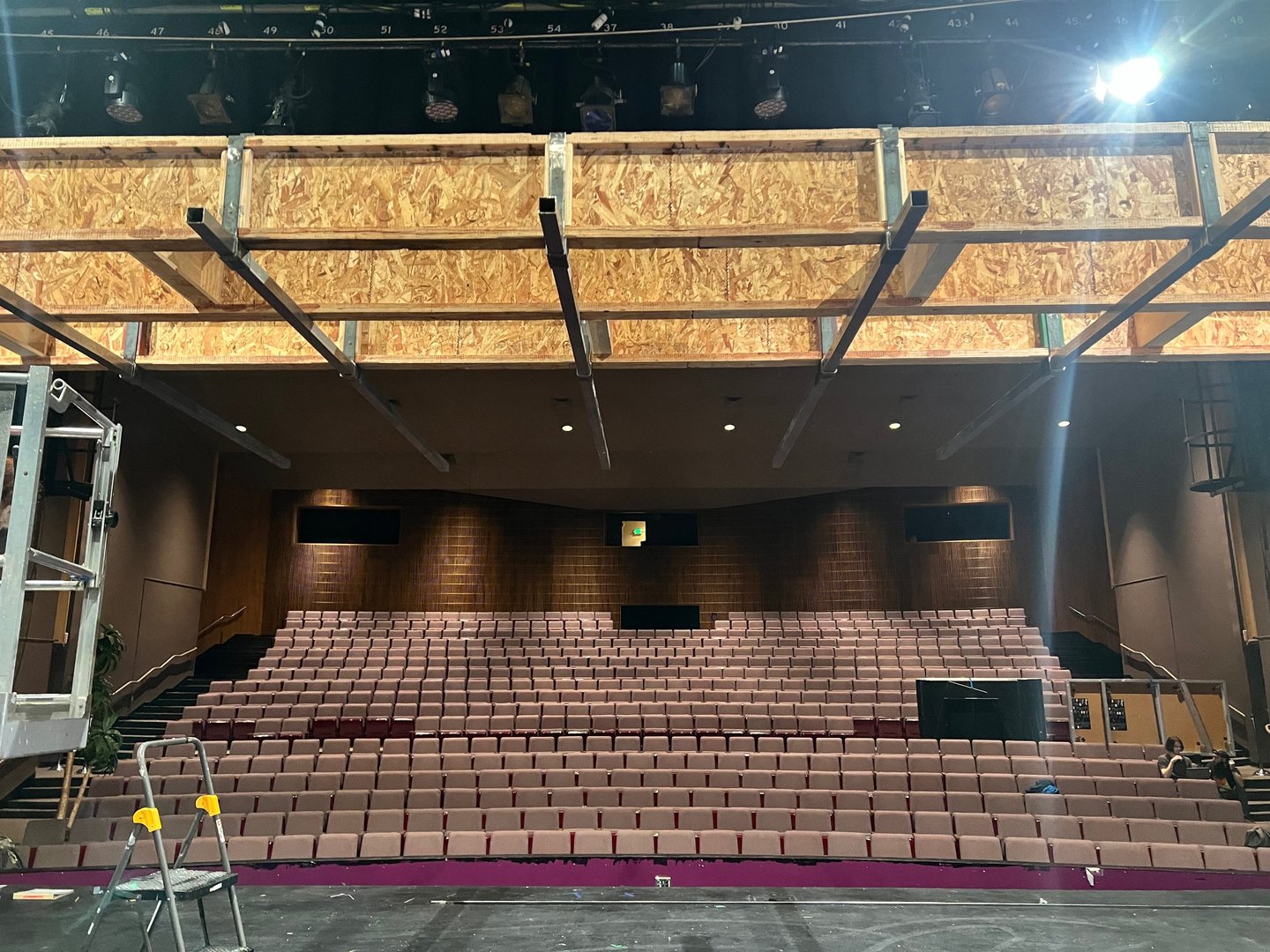

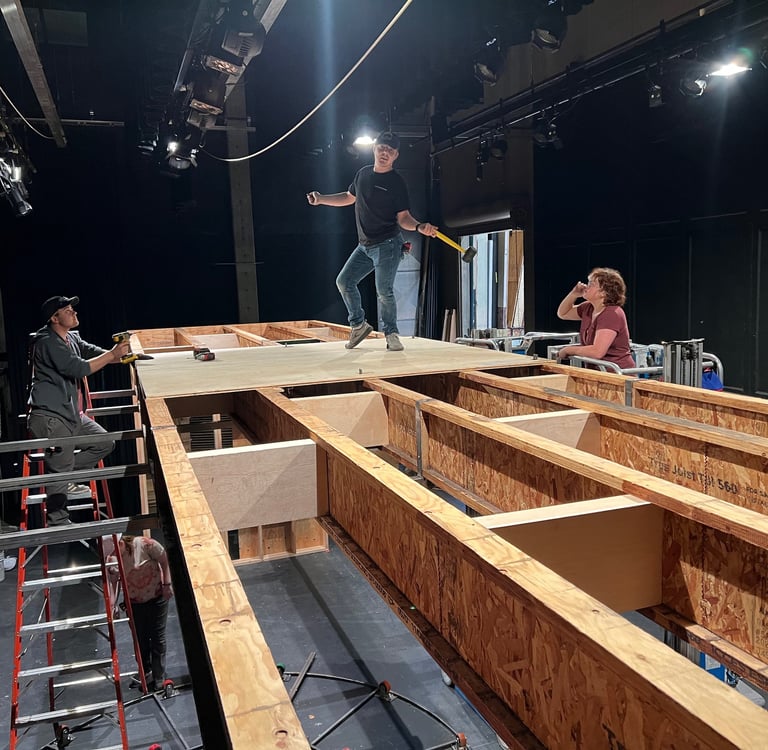

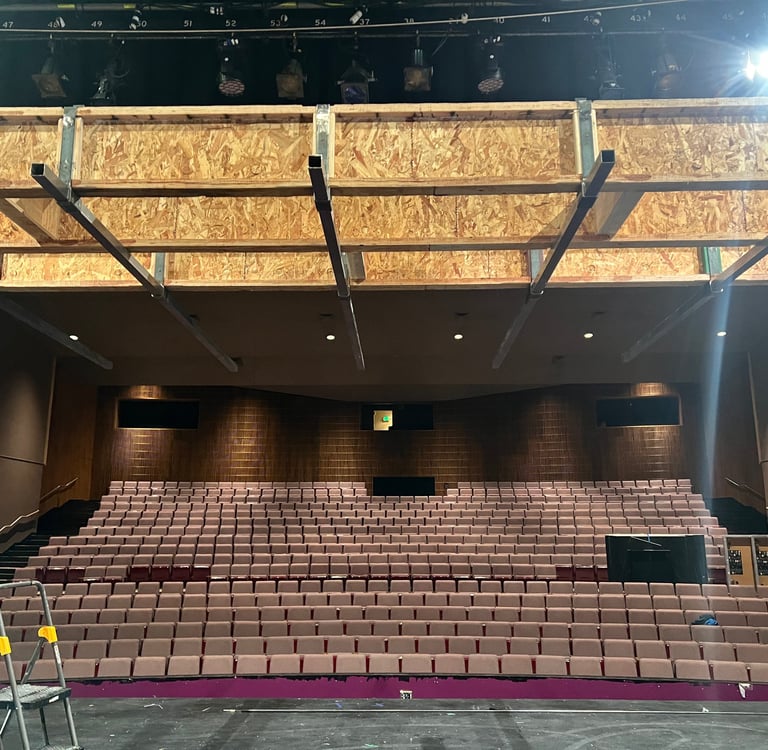

  • the upper deck was made of 18" engineered I Joists

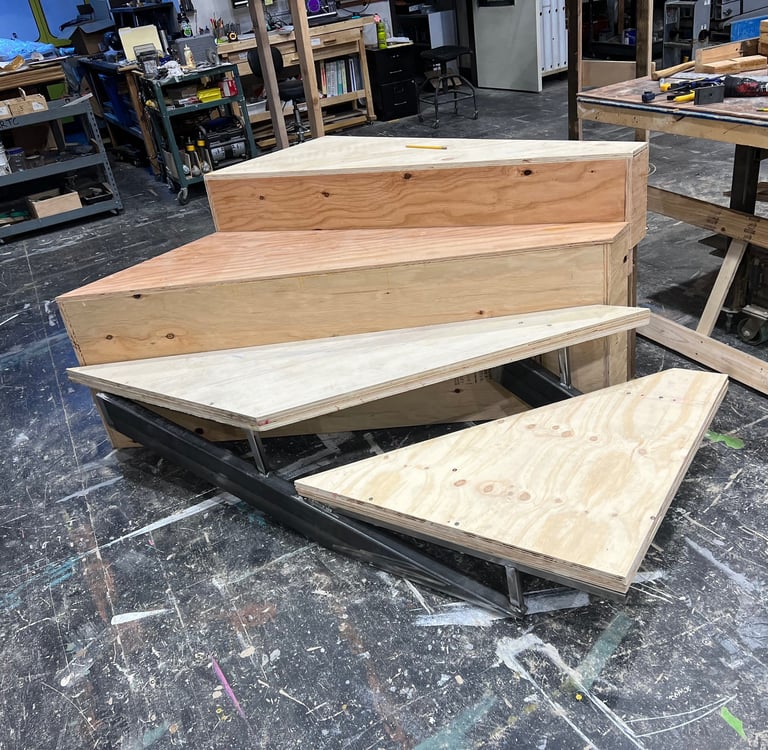

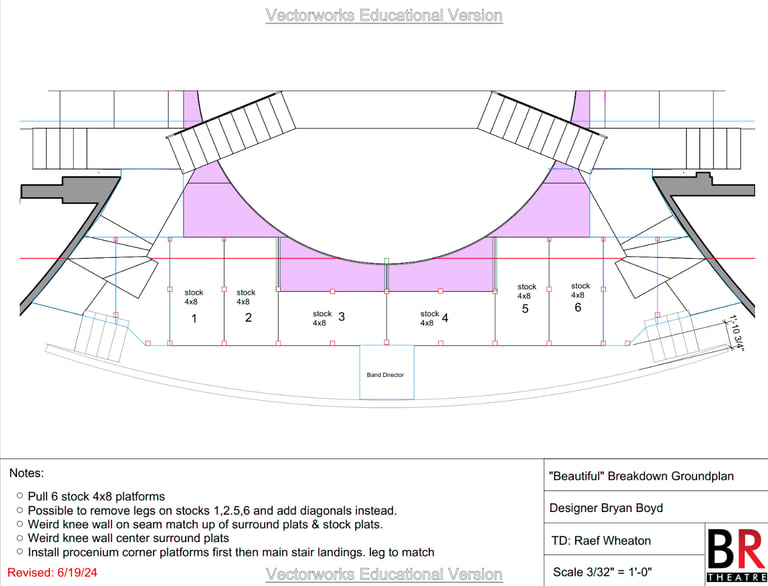

• building up the floor with triscuit platforms to match revolve height

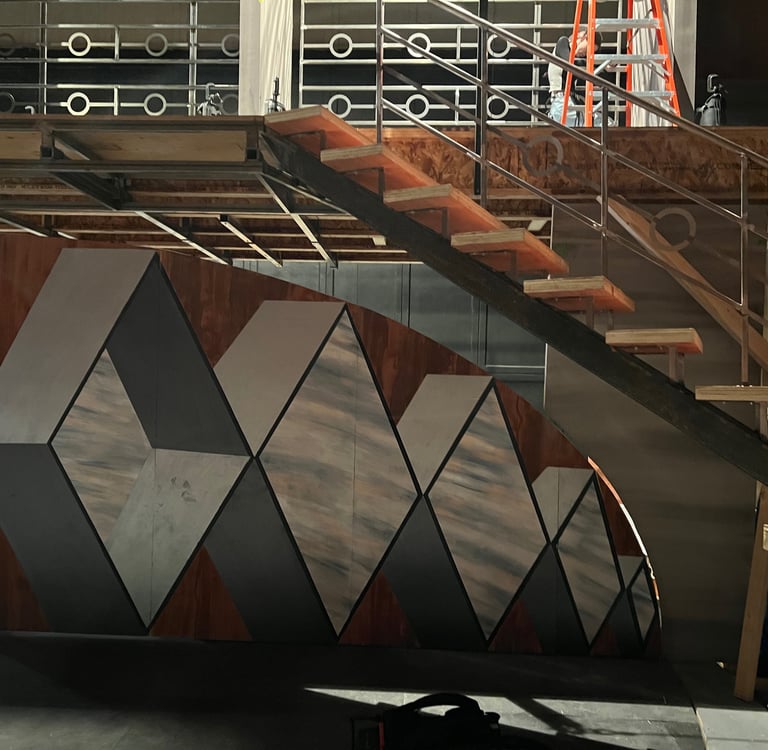

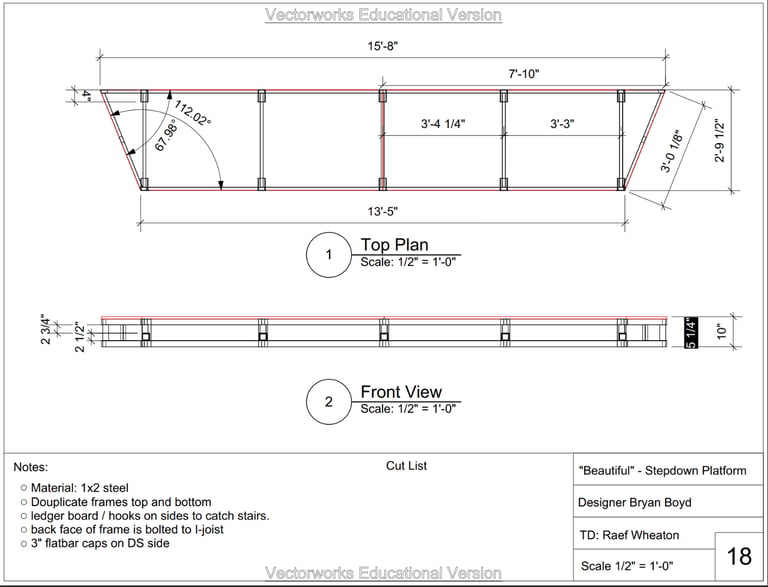

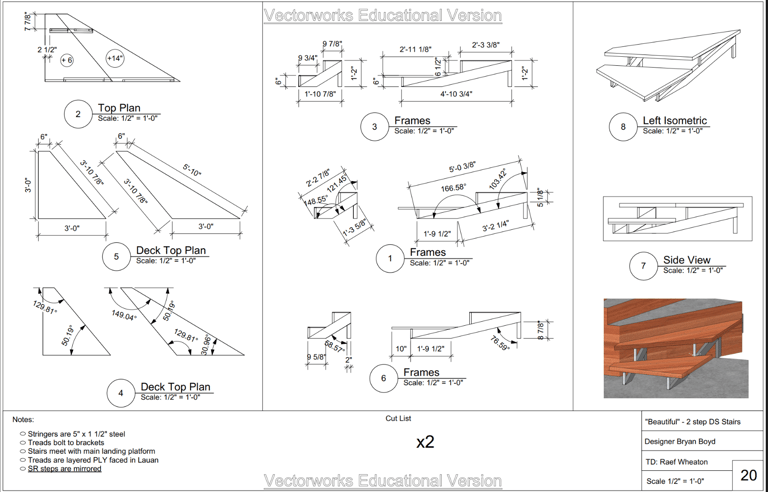

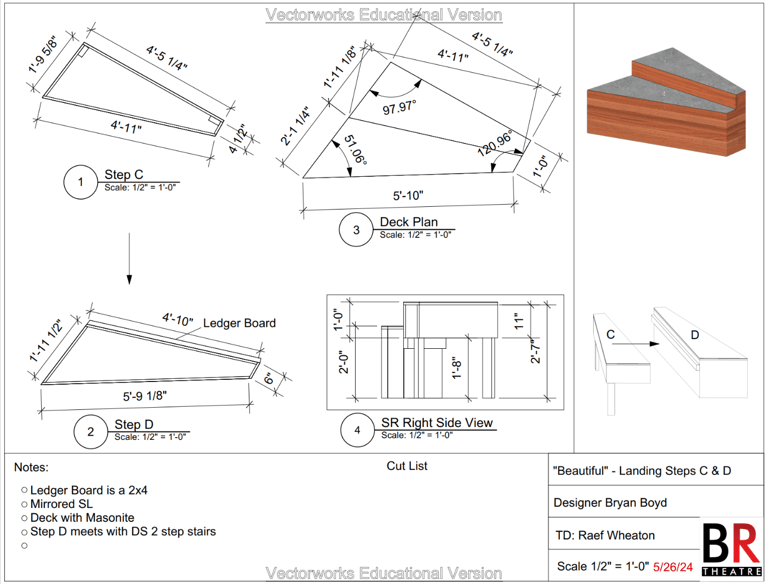

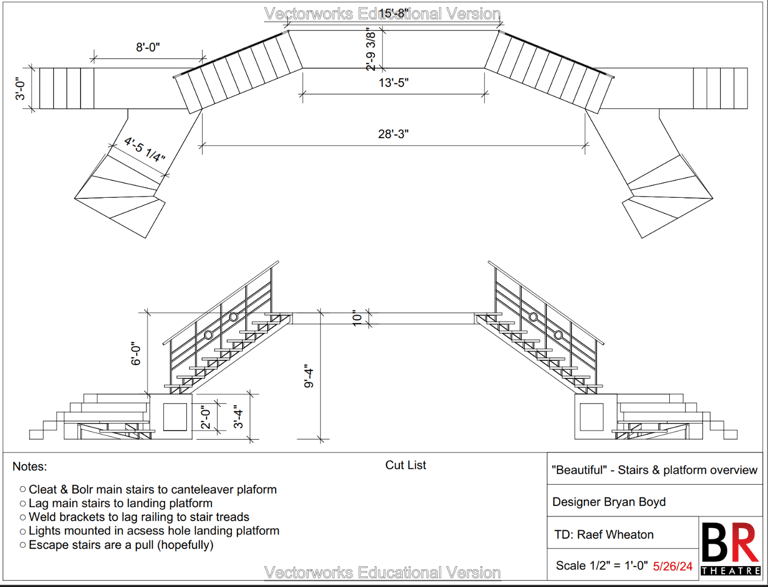

• grey step down platform on 2nd level is a cantilever using 2x2 steel forks running through couplers in the upper deck.

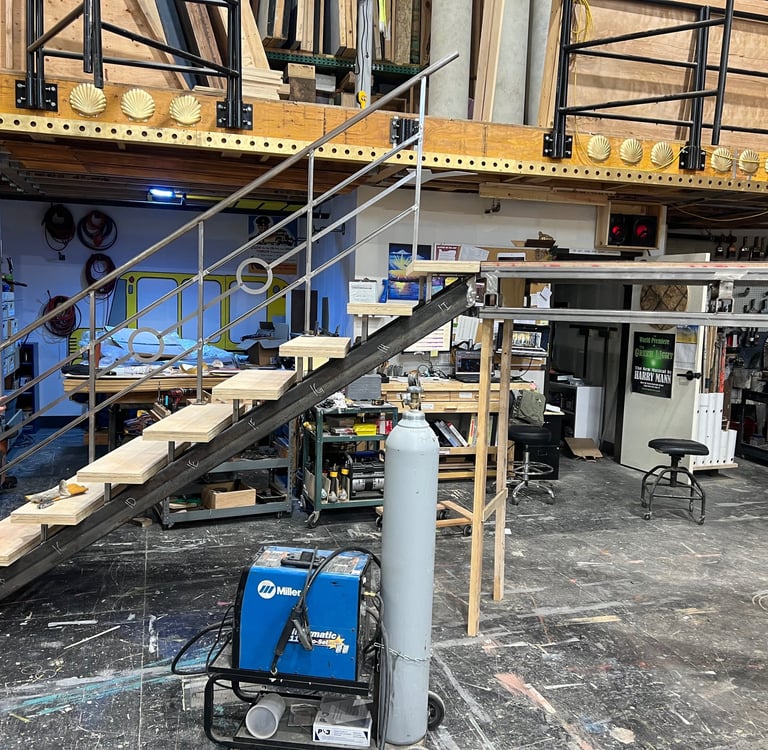

• leading the install of all this with 20 interns Highschool-early college age
