CNC Machining
Specs
Bed size: 4x8
Hurricane Black box Vacuum table (60 amp

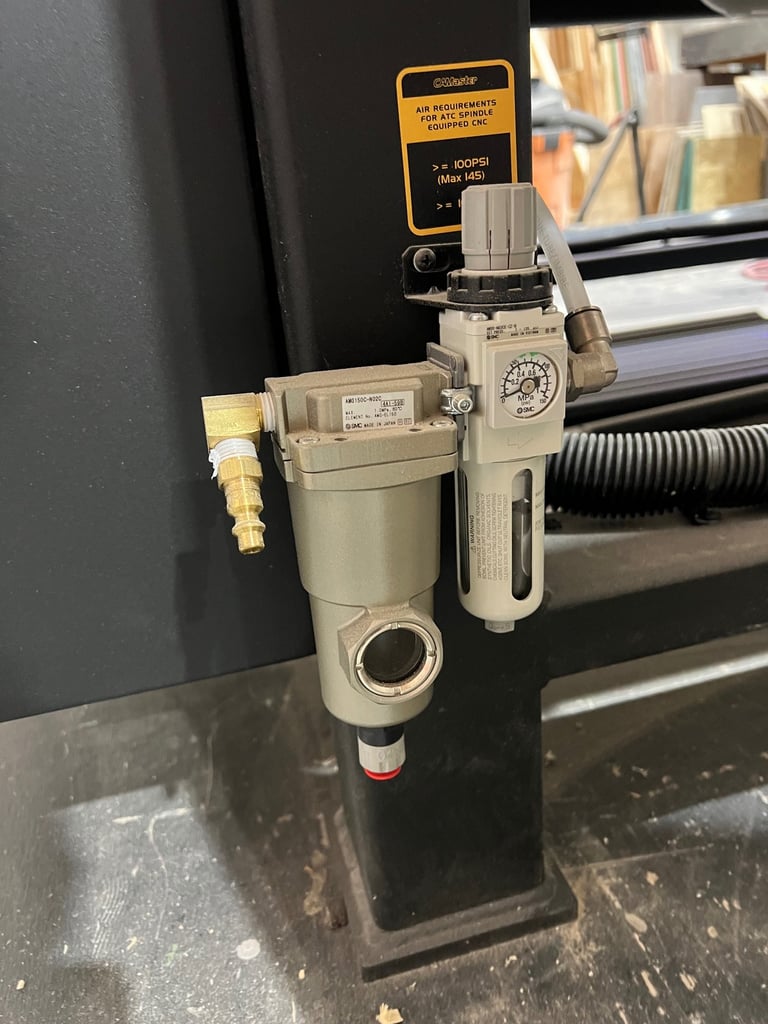

Pneumatic spindle (90 psi min - 10 CFM)
X 6 Automatic tool changer
60 amp power to machine

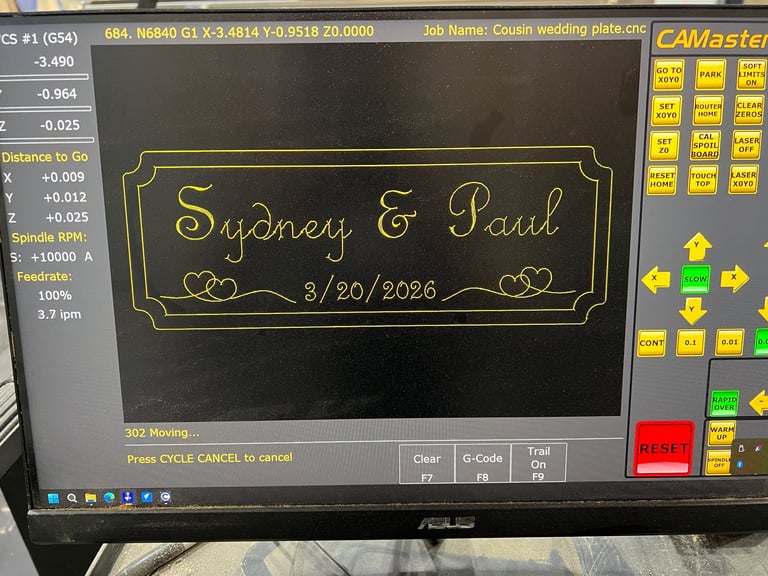

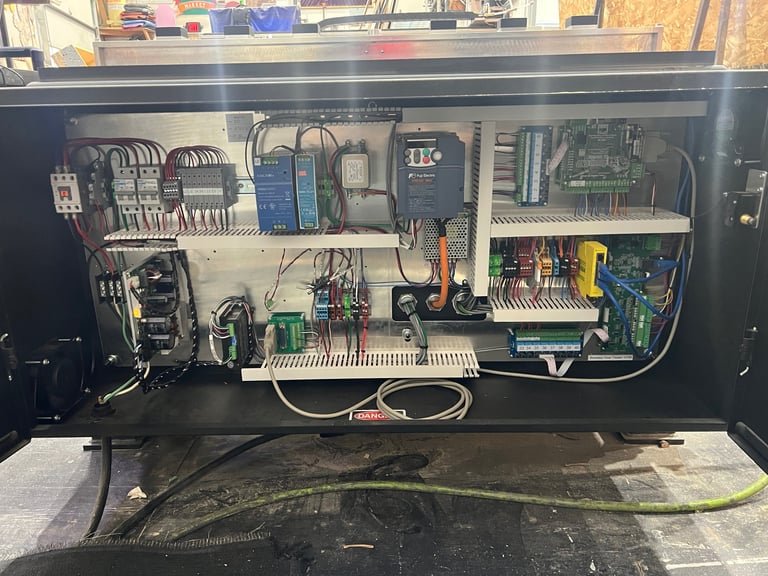

Centroid Acorn controller

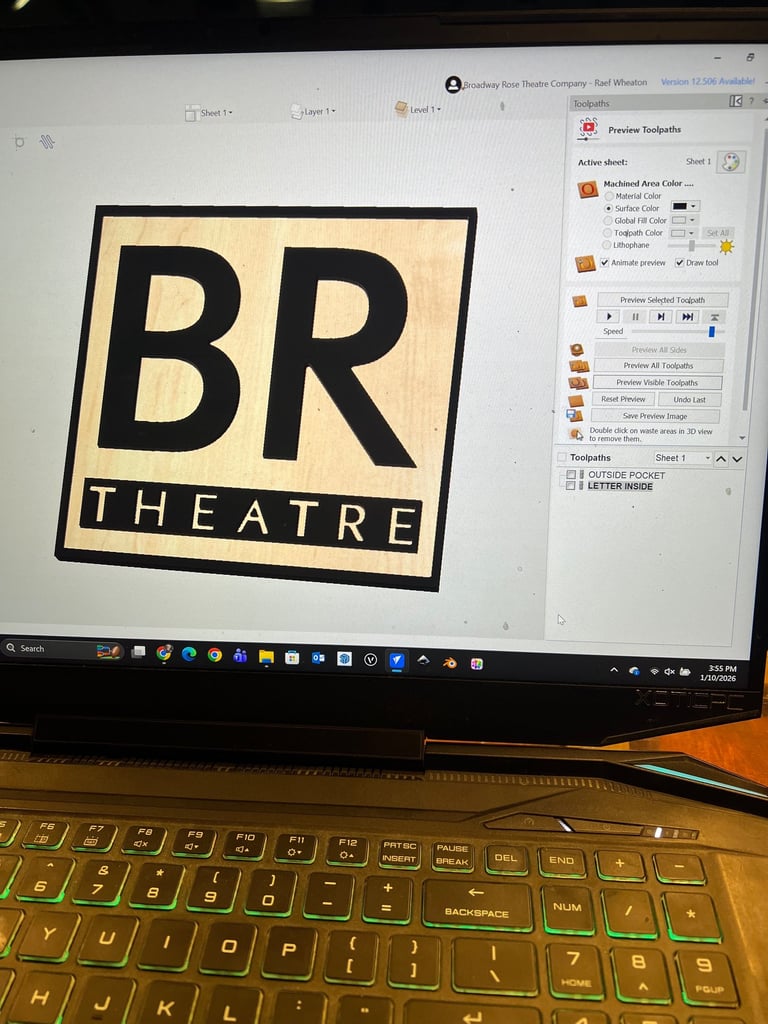

Design Program: V-Carve Pro

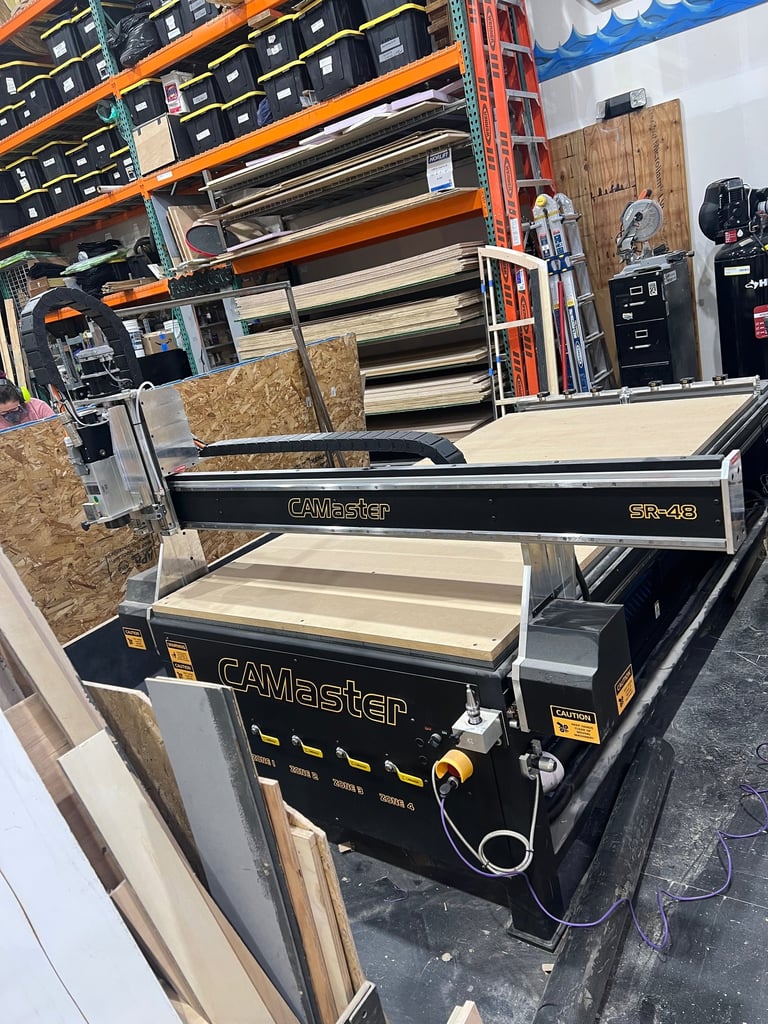

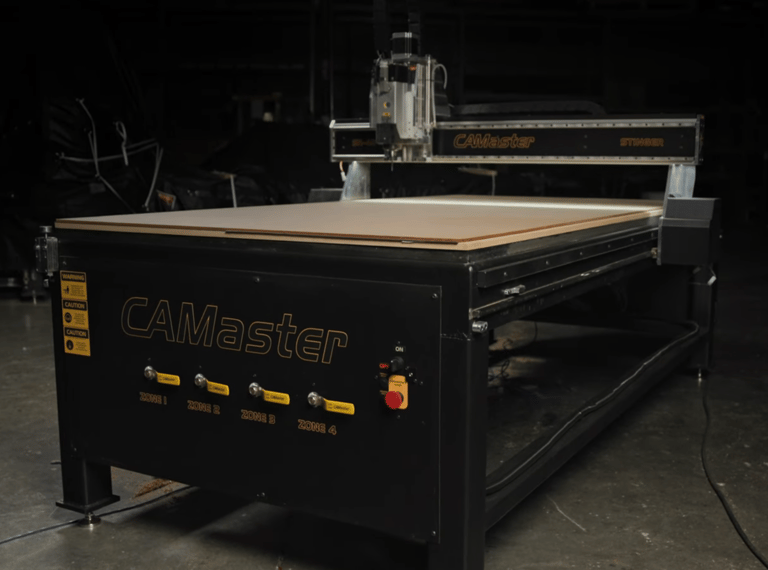

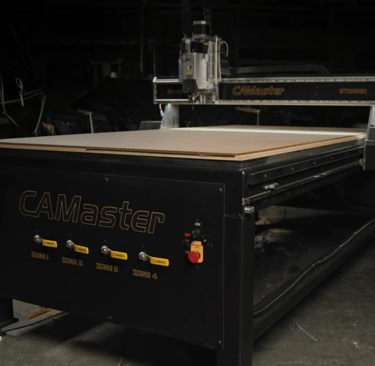

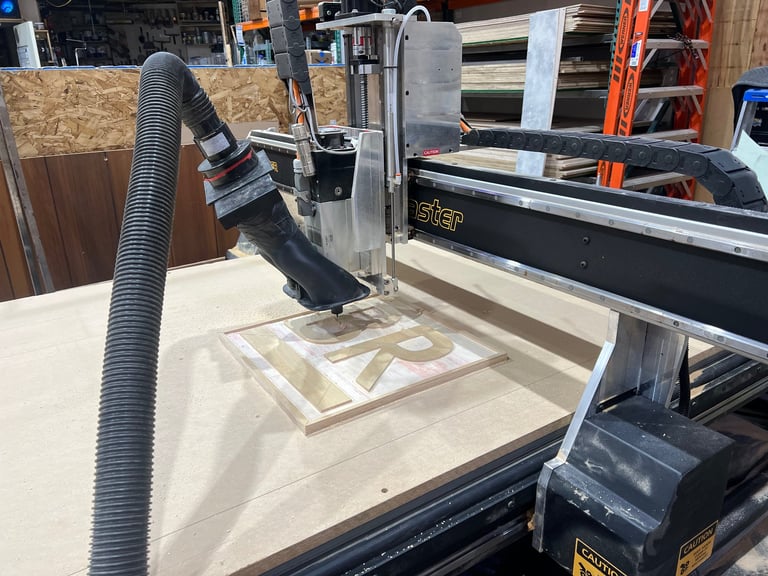

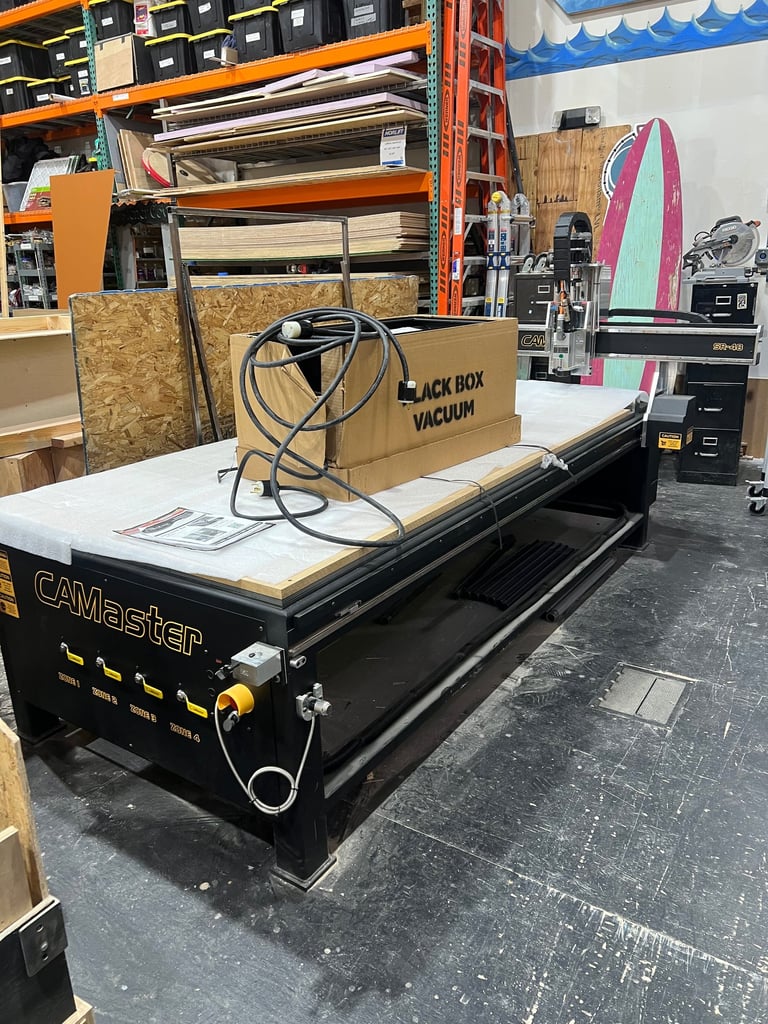

Cam Master Stinger 3 ATC CNC Machine

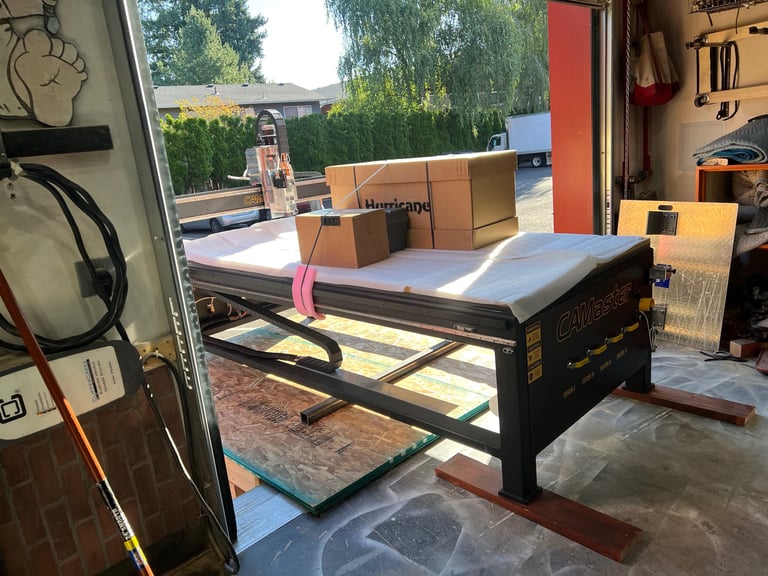

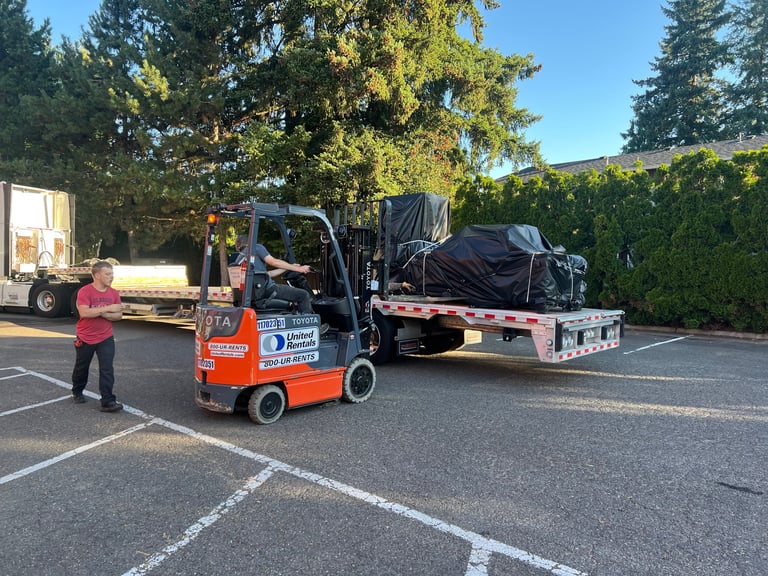

SET UP

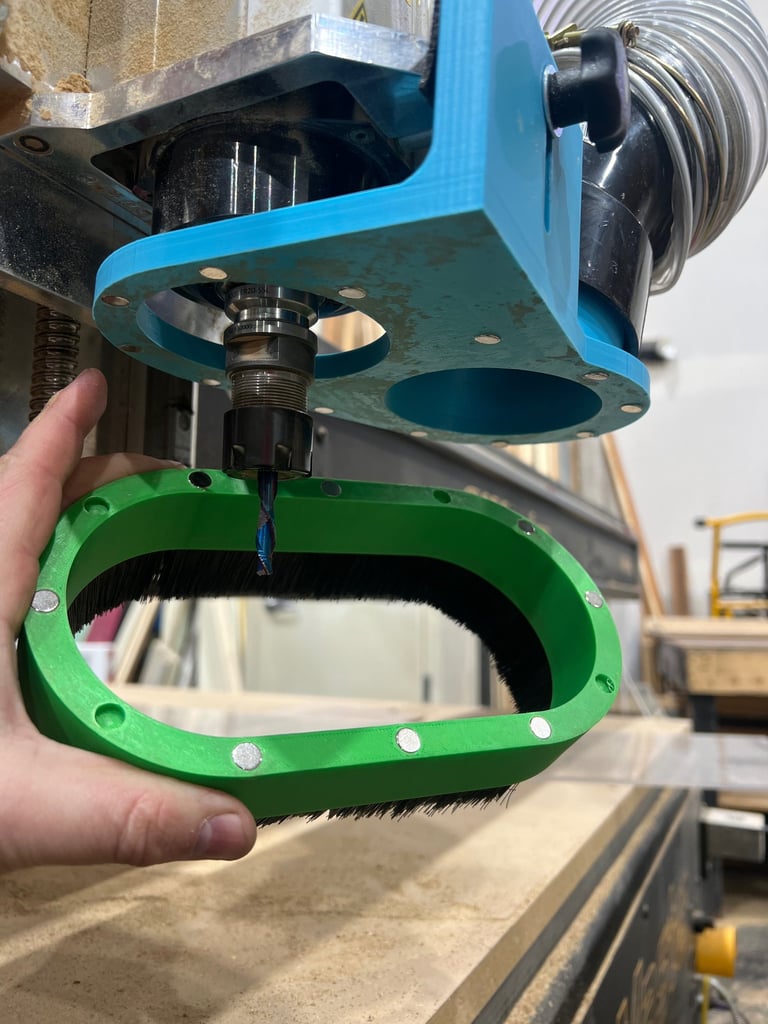

Unfortunately the dust shoe that came with the machine arrived warped. shortly after we got the machine hooked up Cam Master was liquidate and we lost all customer support.

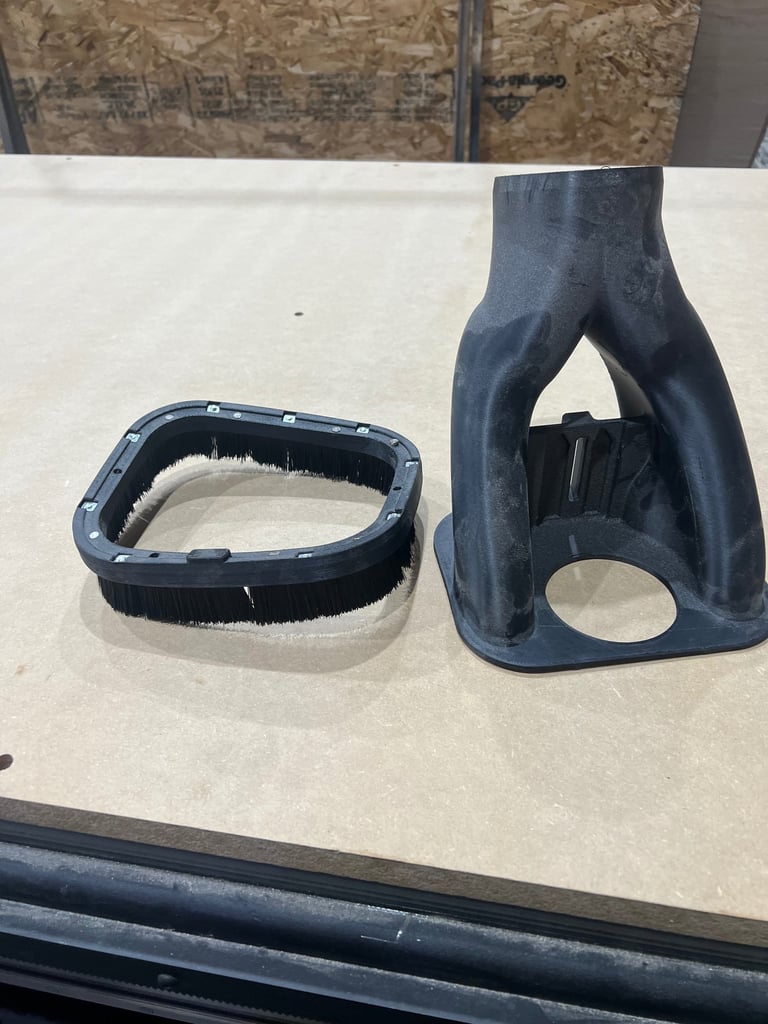

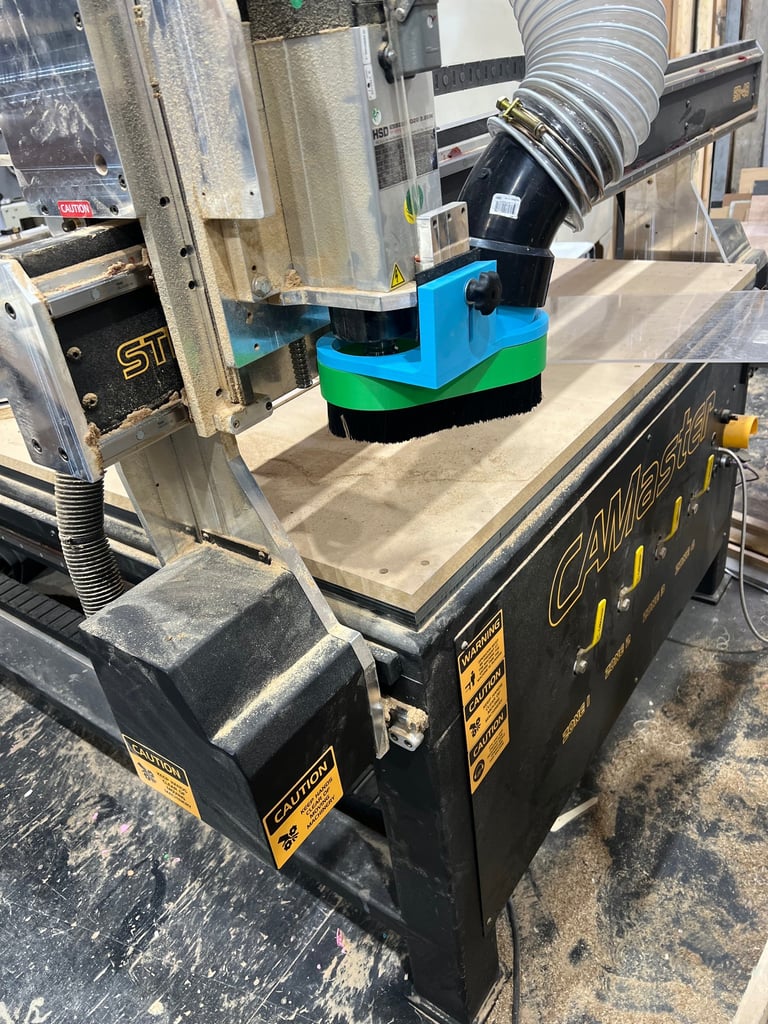

So I went to work designing, modeling and 3D printing my own Dust shoe!
Projects

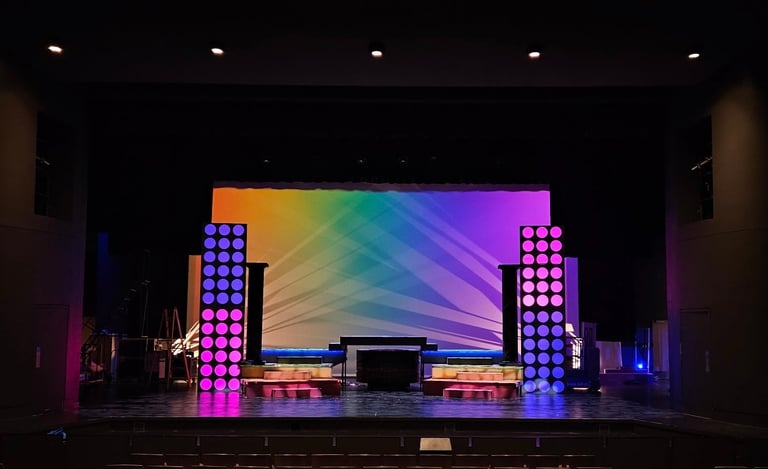

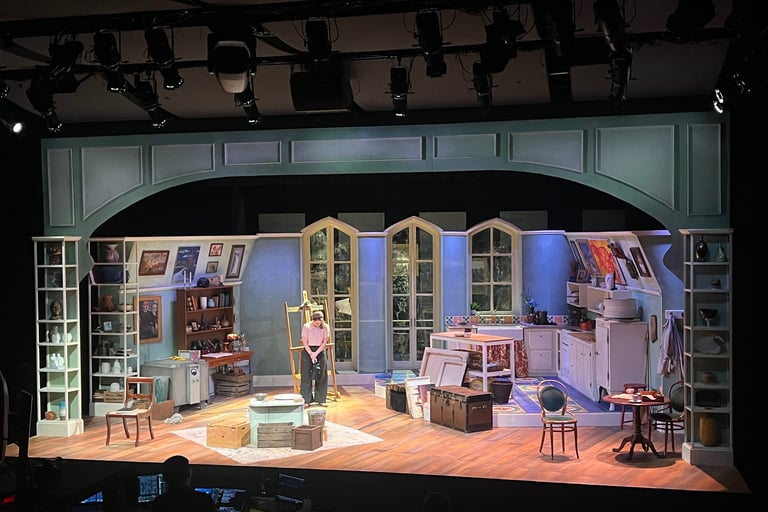

"In Clay" I CNC Cut the Shapes on the Proscenium then trimmed them out with bendy trim board.
I also made 12 reusable battens for the pottery wheel so the actress could have preset centered clay and just switch battens during the show.
